Description

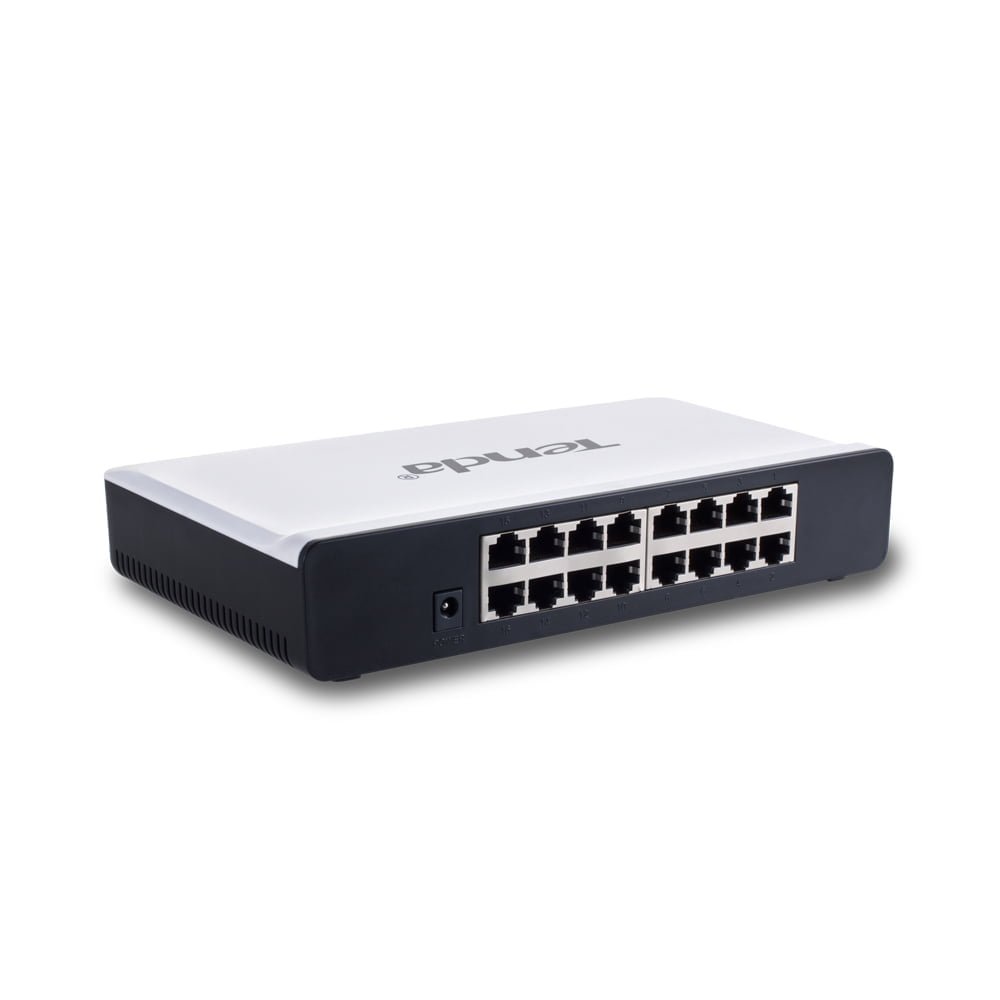

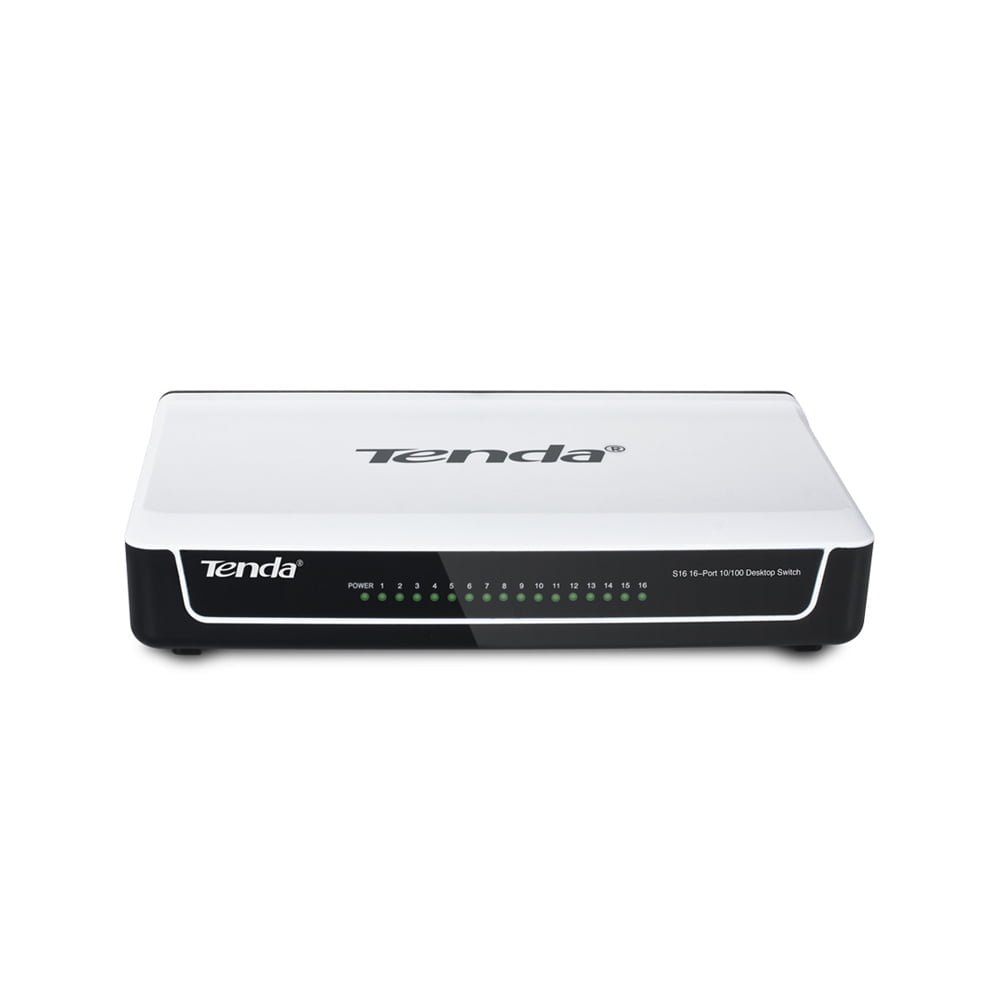

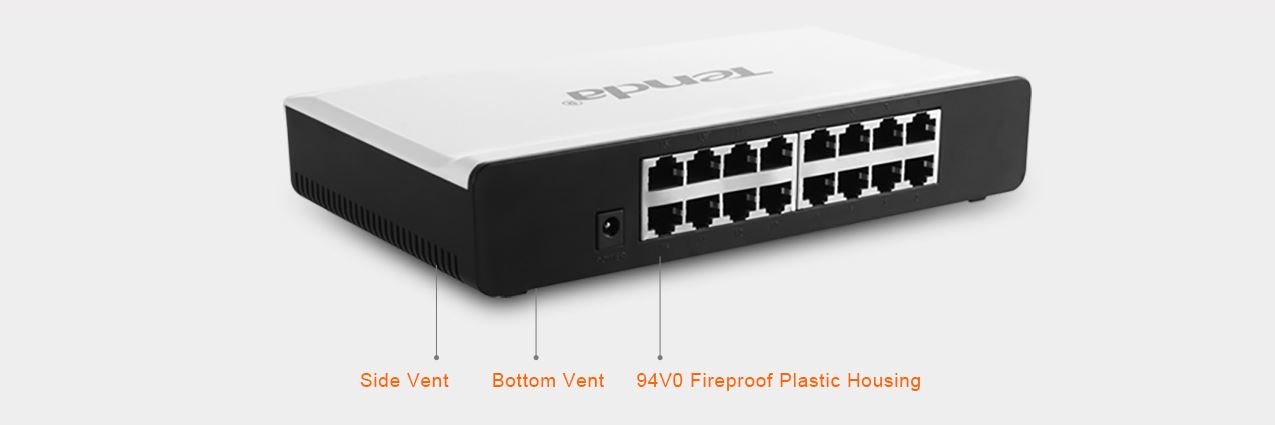

Tenda S16 Switch 16-Port 10/100 Desktop Switch
Standard&Protocol
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x
Port

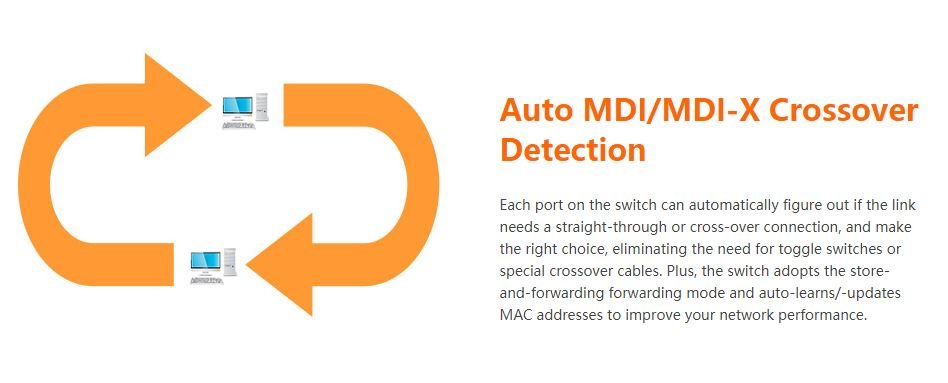

16*10/100M auto-negotiation RJ45 ports (Auto MDI/MDIX)
Transmission Media
10Base-T: Cat. 3 UTP or better
100Base-TX: Cat.5 UTP
1000Base-T: Cat.5e UTP
100Base-TX: Cat.5 UTP
1000Base-T: Cat.5e UTP
Access Control
CDMA/CD
Forwarding Speed
10Mbps:14880pps
100Mbps:148800pps
100Mbps:148800pps
Switching Capacity
3.2Gbps
MAC Address Table
4K
LED
16* 10/100 (LINK/ACT), 1* Power
Dimension
218mm x 135mm x 41.6mm(L x W x H)
Package Content
S16
Power Adapter DC 9V 1A
User Manual
Power Adapter DC 9V 1A
User Manual
Environment
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃
Operating Humidity: 10% ~ 90%RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing
Storage Temperature: -40℃ ~ 70℃
Operating Humidity: 10% ~ 90%RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing
Related Products
L9939D, TEL9901G TEH160SK
Certification
FCC, CE, RoHS, WEEE
