WINDFORCE 2XCOOLING SYSTEM

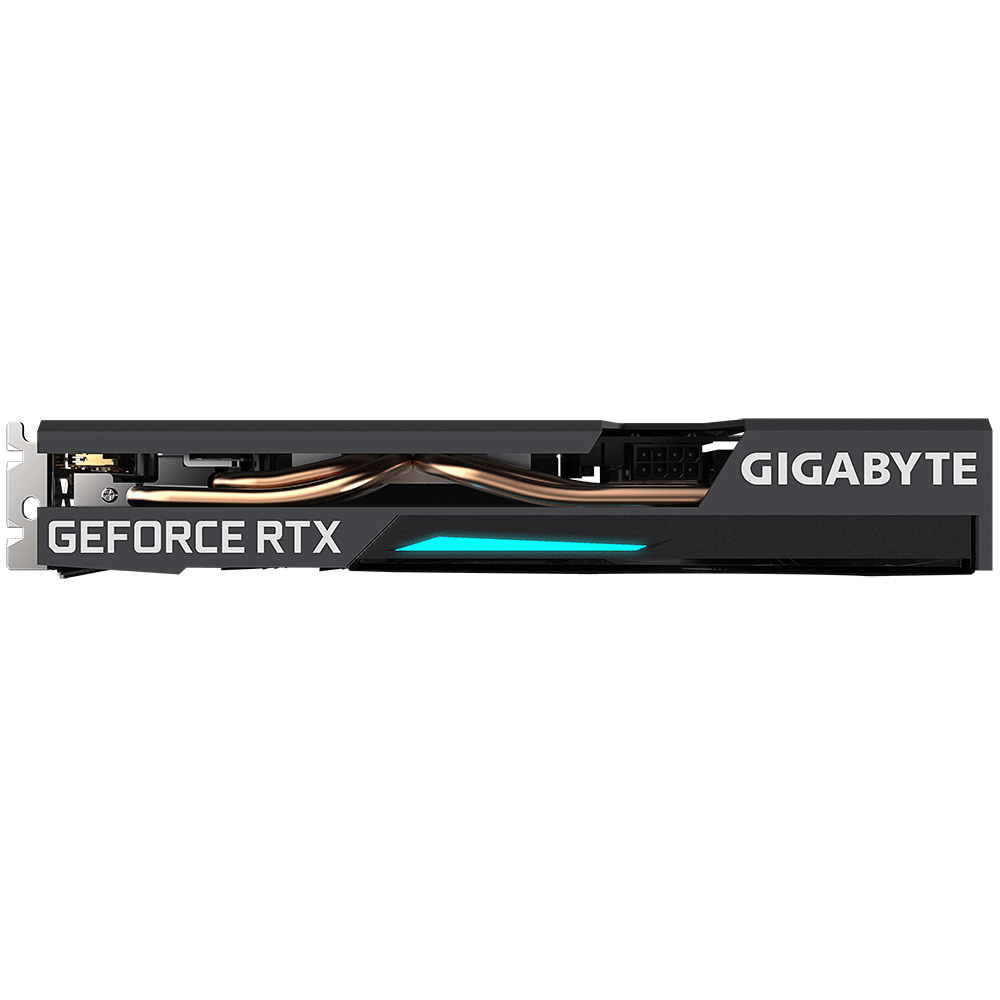

The WINDFORCE 2X cooling system features 2X100mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan, and Screen cooling, which together provide high-efficiency heat dissipation.
* Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
* GIGABYTE graphics cards, except those labeled “Mining Series”, are intended only for use with desktop PCs. Other types of use, such as blockchain computing or cryptocurrency mining, will render the product warranty void.
- Graphics ProcessingGeForce RTX™ 3060
- Core Clock1807 MHz (Reference Card: 1777 MHz)
- CUDA® Cores3584
- Memory Clock15000 MHz
- Memory Size12 GB
- Memory TypeGDDR6
- Memory Bus192 bit
- Memory Bandwidth (GB/sec)360 GB/s
- Card BusPCI-E 4.0 x 16
- Digital max resolution7680×4320
- Card sizeL=242 W=124 H=41 mm
- PCB FormATX
- DirectX12 Ultimate
- Recommended PSU550W
- Power Connectors8 pin*1

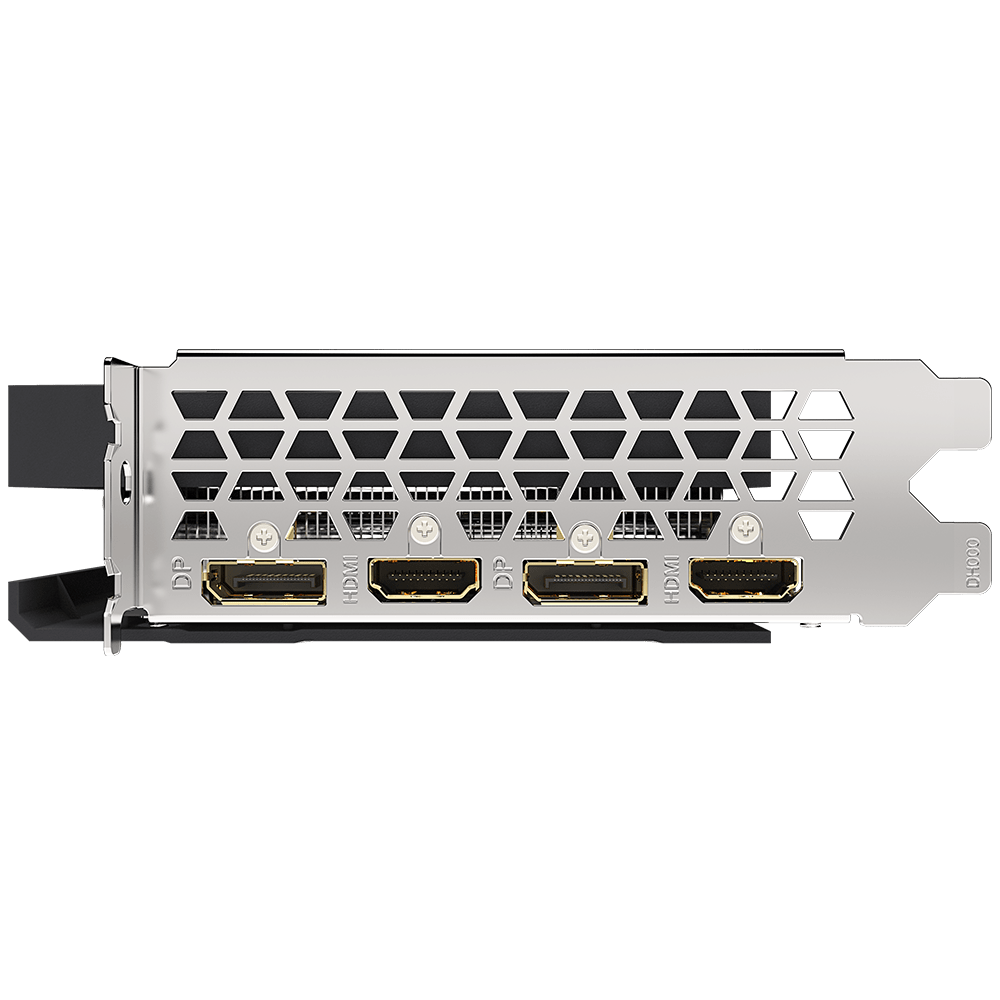

- OutputDisplayPort 1.4a *2
HDMI 2.1 *2
- SLI SupportN/A
- AccessoriesQuick guide
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
