Description

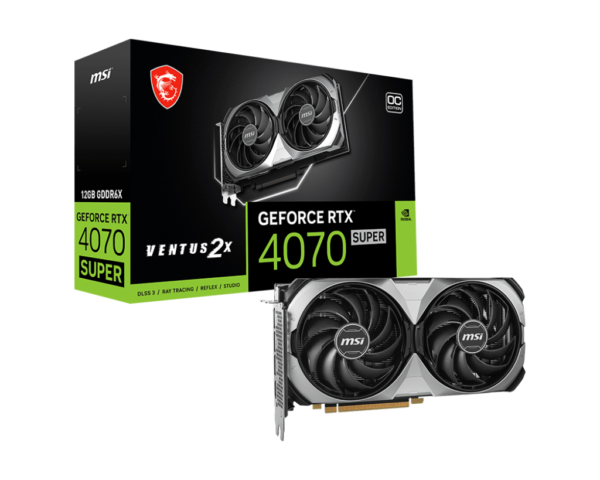

RTX 4070 Super 12G Ventus 2X OC
GeForce RTX™ 4070 SUPER 12G VENTUS 2X OC
WITH DLSS 3
Get equipped for supercharged gaming and creating with the NVIDIA® GeForce RTX™ 4070 SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2505 MHz / 21 Gbps
- 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.
Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specification
MODEL NAME | GeForce RTX™ 4070 SUPER 12G VENTUS 2X OC |
GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 SUPER |
INTERFACE | PCI Express® Gen 4 |
CORE CLOCKS | Extreme Performance: 2520 MHz (MSI Center) |
Boost: 2505 MHz | |
CUDA® CORES | 7168 Units |
MEMORY SPEED | 21 Gbps |
MEMORY | 12GB GDDR6X |
MEMORY BUS | 192-bit |

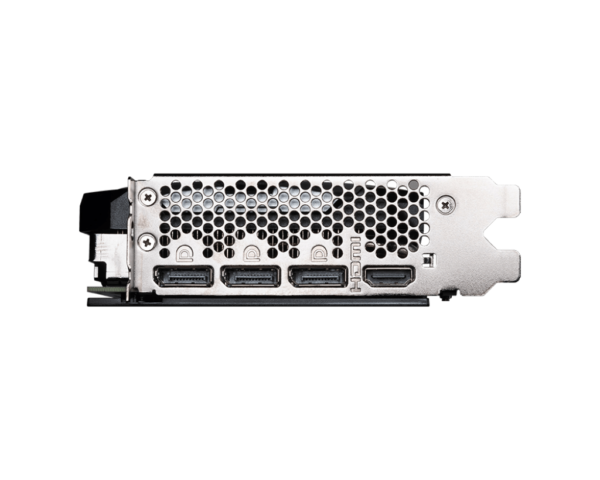

OUTPUT | DisplayPort x 3 (v1.4a) |
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) | |
HDCP SUPPORT | Y |
POWER CONSUMPTION | 220 W |

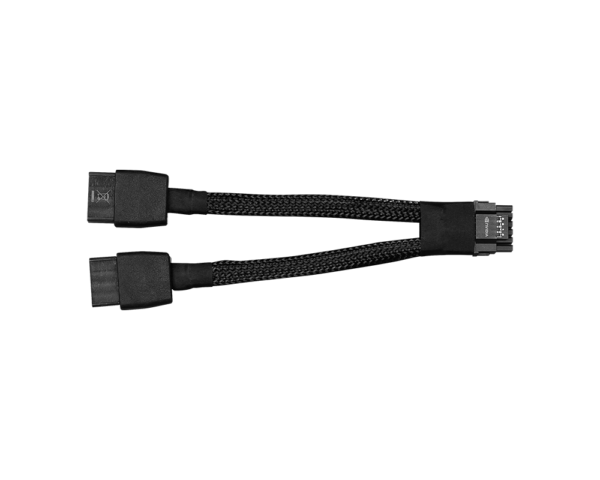

POWER CONNECTORS | 16-pin x 1 |
RECOMMENDED PSU | 650 W |
CARD DIMENSION (MM) | 242 x 125 x 43 mm |
WEIGHT (CARD / PACKAGE) | 680 g / 998 g |
DIRECTX VERSION SUPPORT | 12 Ultimate |
OPENGL VERSION SUPPORT | 4.6 |
MAXIMUM DISPLAYS | 4 |
G-SYNC® TECHNOLOGY | Y |
DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
