Description
Core/Memory
- Boost Clock / Game Clock* / Base Clock / Memory Speed
Up to 1845 MHz/ Up to 1717 MHz / 1607 MHz /14Gbps - 8GB GDDR6

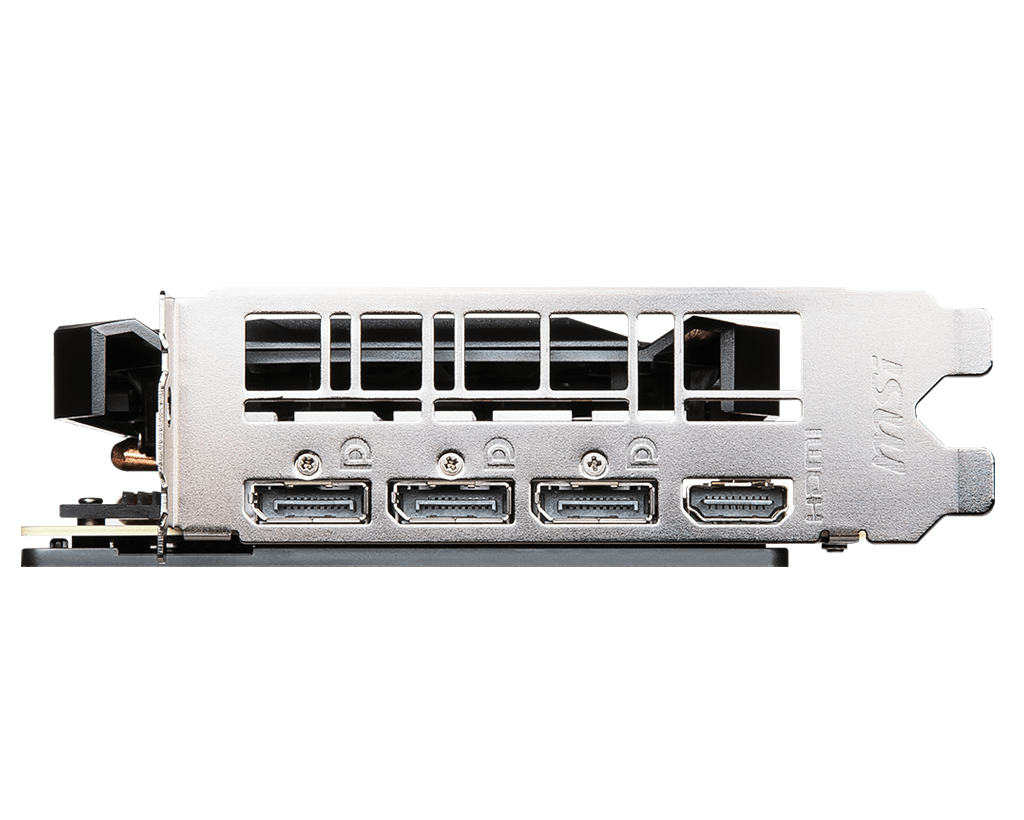

- DisplayPort x 3 / HDMI x 1

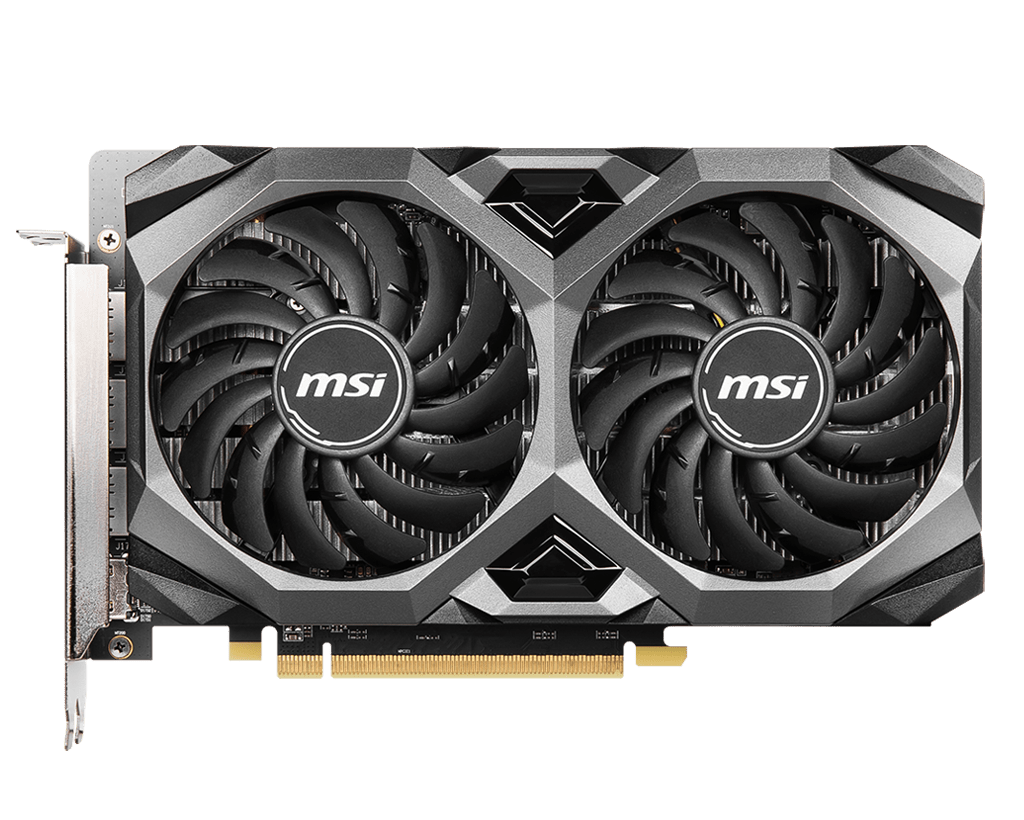

TORX Fan 3.0
- Dispersion fan blade: Steep curved blade accelerating the airflow
- Traditional fan blade: Provides steady airflow to massive heat sink below
Afterburner Overclocking Utility
- Kombustor: The latest DirectX versions benchmark supporting.
- Predator: In-game video recording.
AMD Radeon FreeSync™
- Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

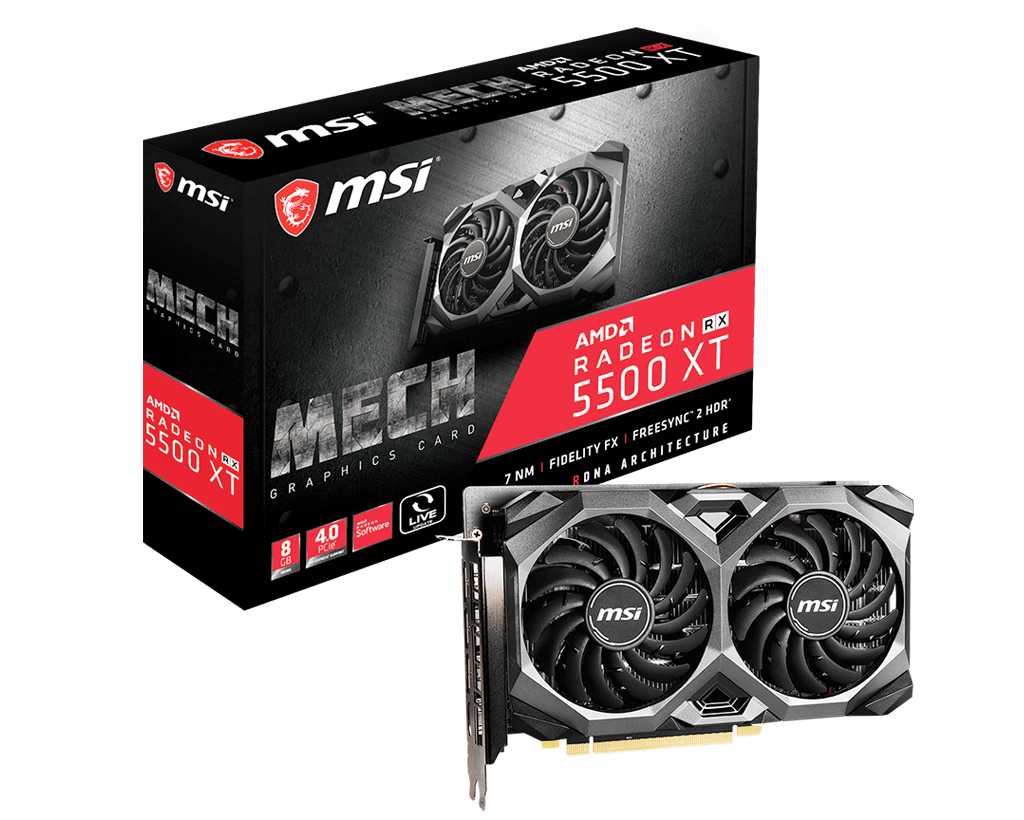

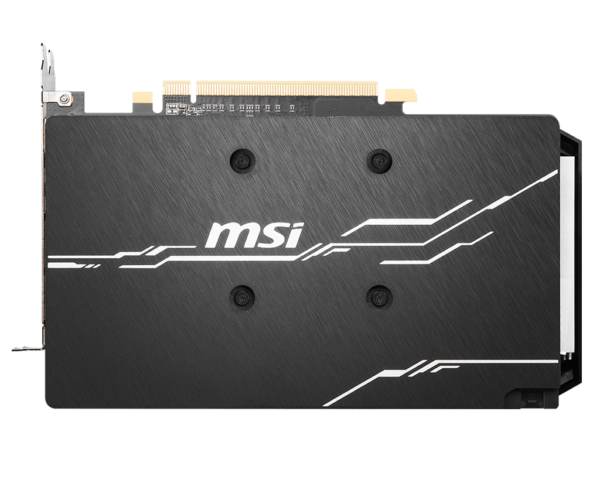

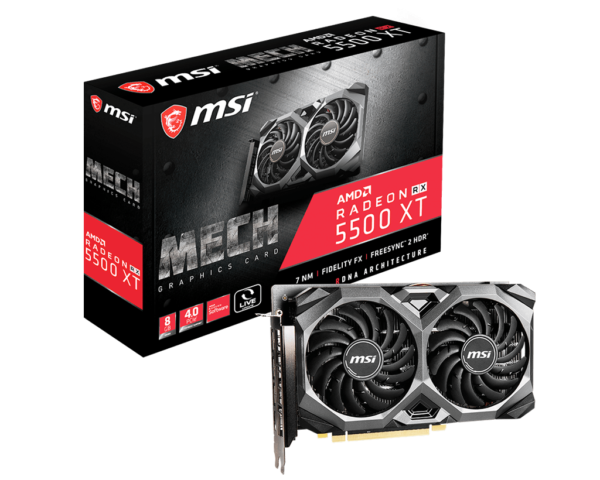

MODEL NAME | Radeon RX 5500 XT MECH 8G |
GRAPHICS PROCESSING UNIT | Radeon™ RX 5500 XT |
INTERFACE | PCI Express 4.0 |
CORES | 1408 Units |
CORE CLOCKS | Boost: Up to 1845 MHz Game: Up to 1717 MHz Base: 1607 MHz (Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.) |
MEMORY SPEED | 14Gbps |
MEMORY | 8GB GDDR6 |
MEMORY BUS | 128-bit |
OUTPUT | DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 |
HDCP SUPPORT | Y |
POWER CONSUMPTION | 130W (This data is not fixed, it may differ by core clocks.) |
POWER CONNECTORS | 8-pin x 1 |
RECOMMENDED PSU | 450W |
CARD DIMENSION(MM) | 215 x 128 x 40 mm |
WEIGHT (CARD / PACKAGE) | 705g / 1064g |
DIRECTX VERSION SUPPORT | 12 |
OPENGL VERSION SUPPORT | 4.6 |
MAXIMUM DISPLAYS | 4 |
VR READY | Y |
DIGITAL MAXIMUM RESOLUTION | 7680×4320 |
