Description

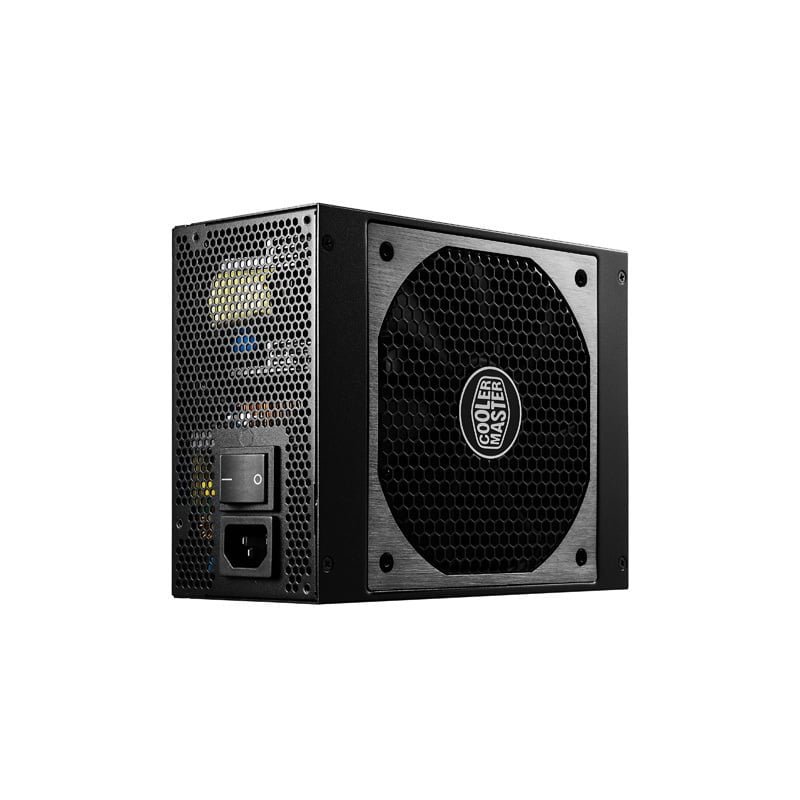

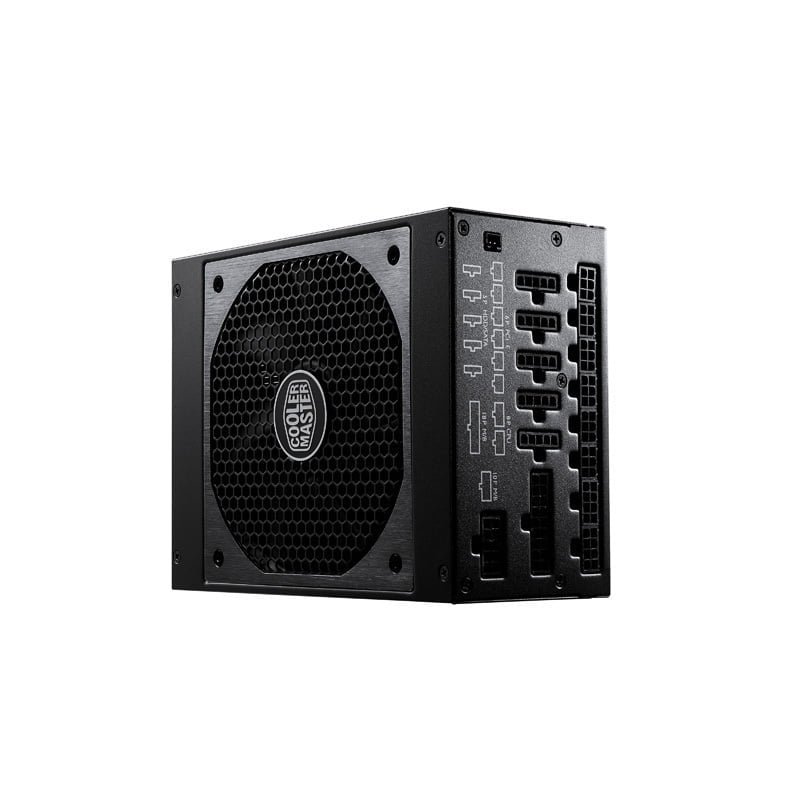

Cooler V1200 PLATINUM PSU
1200W PLATINUM POWER SUPPLY – V1200
COOLER MASTER ANNOUNCES
Cooler Master developed the V-series to re-ascertain its position as the worlds top power supply brand and the reviewers agreed!Based on the highest graded components (DC-DC module design, 100% Japanese capacitors) it features outstanding efficiency, excellent hold up times, voltage stability and ripple suppression. And thanks to high quality FDB fans, V1200 Platinum PSUs are extremely cool and quiet. The V-series uses a fully modular cable system with beautiful all black, extra slim flat-ribbon cables. This makes cable management a breeze and results in elegant looking clean builds with the best possible airflow.
TIGHT VOLTAGE REGULATION
V1200 manages to keep the +12V rail within ±1% at all times, even better than Digital PSU
The 12V rail is the most important part of a modern power supply. Both the CPU and graphics cards, the two most important and power hungry components in any computer, are powered by the 12V line. Voltage fluctuations can cause anything from high pitch noises, lowered CPU and VGA overclock capabilities, system instability or even damage components.
135MM FDB FAN DESIGN
LOW RPM, HIGH EFFICIENCY
HIGH GRADE COMPONENTS
ERP LOT 6 READY
AC INPUT / DC OUTPUT
SAVE MONEY WITH 80PLUS PLATINUM
COOLER MASTER HYBRID FAN TECHNOLOGY
SPECIFICATION
| MODULAR | Full Modular |
| MODEL | RSC00-AFBAG1-XX |
| PFC | Active PFC (>0.9 typical) |
| ATX VERSION | Intel Form Factor ATX 12V V2.31 |
| DIMENSIONS (L X W X H) | 190 x 150 x 86 mm |
| OPERATION VOLTAGE | 100-240Vac |
| INPUT CURRENT | 15-7.5A |
| INPUT FREQUENCY | 50-60Hz |
| POWER GOOD SIGNAL | 100-500ms |
| HOLD UP TIME | >17ms |
| EFFICIENCY | 93% Typically |
| MTBF | >100,000 Hours |
| PROTECTIONS | OVP, UVP, OPP, OTP, OCP, SCP |
| OUTPUT CAPACITY | 1200W |
| OPERATING TEMPERATURE | 0-40°C |
| REGULATORY | CE, TUV, TUV-SUDNRTL, FCC, EAC, CCC, BSMI, RCM, KC |
| FAN SIZE | Silent FDB 135mm |
| CERTIFICATION | 80 Plus Platinum |
| MB 20+4 PIN CONNECTORS | 1 |
| CPU 12V 4+4 PIN CONNECTORS | 2 |
| PCI-E 6+2 PIN CONNECTORS | 12 |
| SATA CONNECTORS | 12 |
| PERIPHERAL 4-PIN CONNECTORS | 9 |
| FDD CABLE 4-PIN CONNECTORS | 1 |
| PRODUCT NAME | V1200 Platinum |
| WATTAGE | Above 750W |
| 80 PLUS | Platinum |
| SERIE | V Platinum Series |
Tapan Dey (verified owner) –
Very well worth the money.
