Description
Core/Memory
- Boost Clock / Memory Speed
1785 MHz / 8 Gbps - 6GB GDDR5
- DisplayPort x 3 / HDMI x 1
Twin Frozr 7 Thermal Design
- TORX Fan 3.0
– Dispersion fan blade: Steep curved blade accelerating the airflow.
– Traditional fan blade: Provides steady airflow to massive heat sink below. - Mastery of Aerodynamics: The heatsink is optimized for efficient heat dissipation, keeping your temperatures low and performance high.
- Zero Frozr technology: Stopping the fan in low-load situations, keeping a noise-free environment.
Dragon Center
- A consolidated platform that offers all software including MYSTIC LIGHT and One-Click Overclocking functionality for your MSI Gaming product.

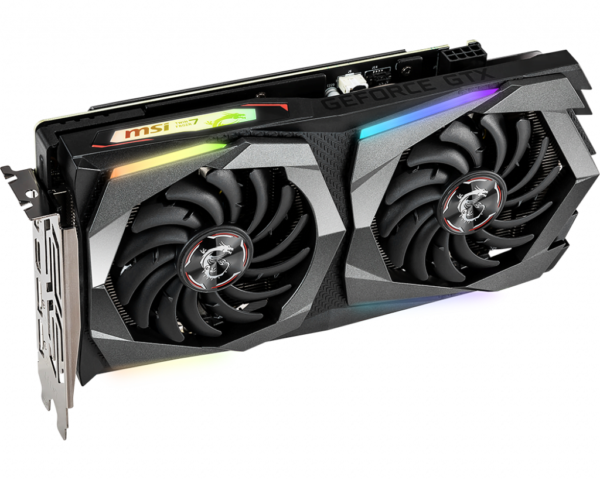

| MODEL NAME | GeForce® GTX 1660 GAMING 6G |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce® GTX 1660 |
| INTERFACE | PCI Express x16 3.0 |
| CORES | 1408 Units |
| CORE CLOCKS | Boost: 1785 MHz |
| MEMORY SPEED | 8 Gbps |
| MEMORY | 6GB GDDR5 |
| MEMORY BUS | 192-bit |
| OUTPUT | DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 |
| HDCP SUPPORT | 2.2 |
| POWER CONSUMPTION | 120 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 450 W |
| CARD DIMENSION(MM) | 247 x 127 x 46 mm |
| WEIGHT (CARD / PACKAGE) | 845 g / 1474 g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.5 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680×4320 |
